Tube expansion is crucial where tubes must be firmly attached to tube sheets to prevent any leak in heat exchangers, pressure vessels, and boilers. By manually expanding the tube’s diameter, a pressure-tight seal is created when the tube presses firmly against the tube sheet hole walls.
The process expands the tube and reduces wall thickness against the hole surface in the tube sheet using a special tool called a tube expander.
What Is A Tube Expander Machine?

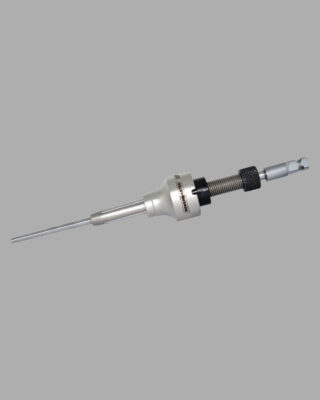

A tube expander expands the end of a tube into a tube sheet or fitting to create a secure, leak-proof mechanical joint. It has 4 parts:
- Cage (Main Body)
- Mandrel (rotating conical shaft)
- Rolls (conical cylinders)
- Thrust collar (spacer)
How Does A Tube Expander Machine Work?
Below are the steps of how a tube expander machine actually works:
- The operator inserts the tube expander, with the mandrel withdrawn, into the tube until the thrust collar contacts the tube sheet.
- Rotating and pushing forward the mandrel brings it into contact with the rolls.
- The rolls, in turn, start to rotate due to friction and come into contact with the tube, imparting rotary movement to the cage and causing the mandrel to move forward.
Where Are Tube Expander Machines Used?
These machines are commonly used in boilers, heat exchangers, condensers, chillers, and other equipment containing numerous tubes. They are particularly useful where many tube connections must be produced consistently and efficiently during manufacturing, installation, or maintenance.
What Are Boiler Tube Expanders?
A boiler tube expander is a rotating tool that cold-works a boiler tube outward into its tubesheet hole to form a leak-tight, mechanically locked joint.
Role Of Boiler Tube Expanders
Production rolling motors run the expander at 200-600 RPM under torque control, holding wall reduction inside a 5-10% window. The tool exists because welding alone cannot reliably seal thin-wall tubes into thick tubesheets across thousands of joints. Power plants, HRSGs, and Scotch marine boilers depend on it, a single 250 MW utility boiler can hold over 8,000 rolled tube ends.
Benefits Of Using Boiler Tube Expanders
Boiler tube expanders improve efficiency, safety, and equipment life by precisely connecting boiler tubes to tube sheets in a long-lasting, leak-proof manner.
Look at the Key Benefits:
- Leak Proof
- Cost-Effective Alternative to Welding
- Extended Equipment Life
- Reduced Downtime and Maintenance
- Enhanced Safety Compliance
- Versatility
- Improved Boiler Efficiency
- High Pressure and High Temperature Reliability
How To Choose The Right Tube Expander Machine
- When choosing a tube expander machine, consider expansion accuracy, tube-size range, power needs, working speed, durability, and ease of maintenance.
- Different tubes and applications may require different expansion settings, so adjustable expansion control is very helpful.
- Long-term operation also depends on the availability of replacement mandrels, rollers, and other worn parts.
Conclusion
Boiler tube expanders are essential for ensuring leak‑free, efficient, and safe boiler operation, while also lowering maintenance costs and extending equipment life. They help reduce the risk of leakage and help improve efficiency with better control compared with manual expansion methods
If you want reliable industrial boiler tube expanders, consider visiting Tube Expender. They deal in a wide variety of industrial tube expanders, such as 114, A, AF3, AB, ABF3, P‑1000, P‑3000, V, SB, and CSB, each tailored to different tube dimensions, wall thicknesses, and industrial uses
